Masport Ambassador Deluxe Inbuilt MKII BBQ

The Ambassador Deluxe IB is our larger flagship inbuilt BBQ. Constructed from premium 304 stainless steel with heavy duty main burners and a versatile rear burner. Together with its clean and slick lines, it offers both aesthetic design and functionality all in one.

The Masport Ambassador Deluxe Inbuilt Barbecue Includes:

• 6 premium 304 grade stainless steel burners with stainless steel flame diffusers
• Wok Burner and Infrared Rear Burner
• 304 Stainless Steel Hood with Stainless Steel Ends and Window
• LED Grill Lights
• Electronic ignition
• Rotisserie Kit
• Slide Out Drip Tray
• Temperature Gauge
• Roasting Rack
• UV Resistant Cover

Product Features:

• Reliable integrated ignition
• 6 premium 304 stainless steel burners
• Stainless Steel Flame Tamers improve heat distribution over full cooking surfaces
• Sleek Premium Stainless Steel Hood with a window, double lined to aid heat retention
• Vitreous cast iron hotplate and stainless steel grill (Configuration 30/70)
• Stainless steel grill body is easy to clean and maintain
• Natural gas conversion available; Conversion Kit: 547548

Barbecue Body:

Stainless Steel	304 Grade
Fascia	Stainless Steel Trim
Hood	304 Stainless Steel with Stainless Steel Ends and Windows
Grill Body	304 Stainless Steel
Plate / Grill Type	Vitreous Cast Iron / Stainless Steel
Cooking Configuration	30/70 Split Hotplate & Grill
Control Knobs	Soft Grip, Stainless Steel
Number of Main Burners	6
Burner Type	1.0mm 304 Stainless Steel
Main Burner Mj/h	6 x 13
Side Burner Mj/h	1 x 12
Rear Burner Mj/h	1 x 12.5
Flame Diffuser / Tamer Type	Stainless Steel
Ignition Type (Main & Rear)	Electric
Ignition Type (Side)	Integrated

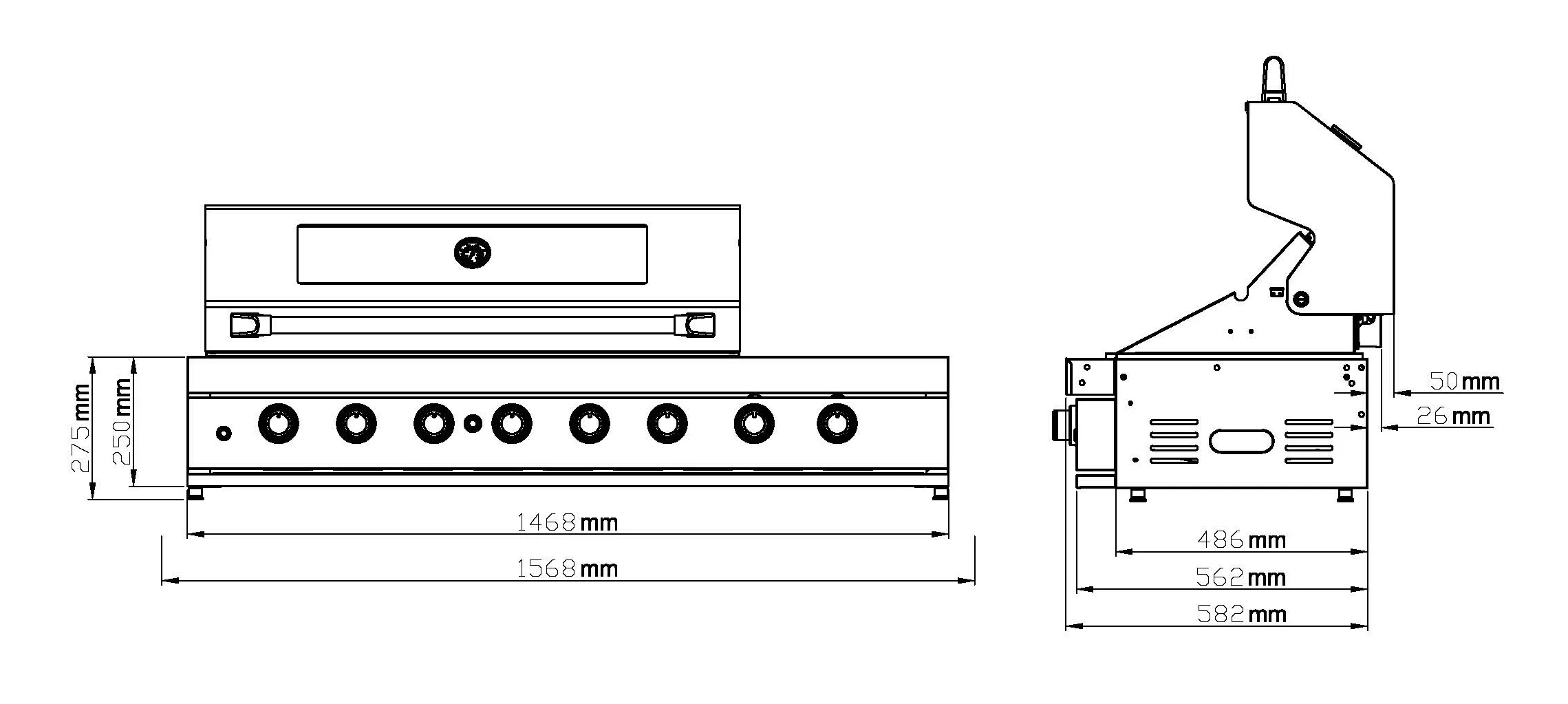

Dimensions:

1468mm (W) x 582mm (D) x 294mm (H)

Cooking Surface: 960mm x 460mm

Installation

Manuals

Masport Ambassador Deluxe Inbuilt Owners Manual

Masport Warranty Information
